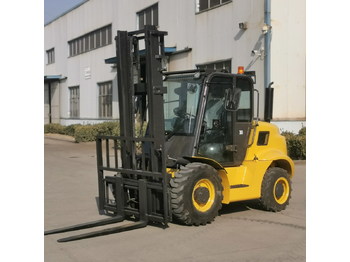

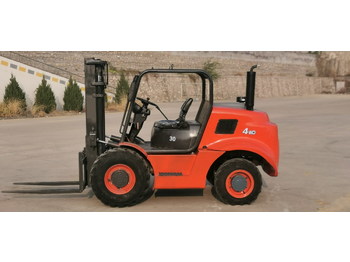

جديد شاحنات الطرق الوعرة QINGDAO PROMISING 3T 4WD Rough Terrain Forklift CPCD30

3.0T Rough Terrain Forklift CPCD30

Technical Specifications:

Model: CPCD30

Power Type: Diesel

Drive Type: 2WD/4WD

Rated Capacity: 3000kg

Load Center: 500mm

Standard Lifting Height: 3000mm

Mast Tilt Angle (F/R): 6/12 Degree

Wheel Base: 1850/1860mm

Front Wheel Tread: 1385mm

Rear Wheel Tread: 300/1380mm

Service Weight: 5450/5550kg

Min. Turning Radius: 3800mm

Min. Ground Clearance: 320mm

Service Brake: Hydraulic Foot Pedal

Parking Brake: Mechanical Hand Lever

Lifting Speed: 430mm/s

Lowering Speed: 460mm/s

Max. Travel Speed: 32km/h

Max. Gradeability: 40%

Engine: XINCHAI 4D35G 48kW/2300rpm diesel engine

Fuel Tank Capacity: 100L

Battery: 24V/60Ah

Gearbox Model: 265

Transmission Type: Hydrodynamic

Tyre Type: Pneumatic Tyres

Front Tyre Model: 14-17.5

Rear Tyre Model: 10-16.5

Fork Size (Thickness x Width x Length): 45x125x1220mm

Overall Length (Without Forks): 3300mm

Overall Width: 1760mm

Overall Height (Mast Extended): 4725mm

Overall Height (Mast Lowered): 2420mm

Height of Overhead Guard: 2420mm

Note:

1. Technical specifications are for standard models only.

2. All photos are for references only. Machines shown may include optional parts.

3. Other optional accessories, functions and requirements are available upon request.

4. All specifications and design characteristics are subject to change without prior notice.

Optional Engines

Yanmar 4TNE98 43kW/2300 rpm

Cummins 4BTA3.9-C80 60 kW / 2200 rpm

Optional Parts:

Enclosed Cabin, Sideshifter, Various Masts, Special Bucket, etc.
