رافعة شوكية Three-Point Forklift

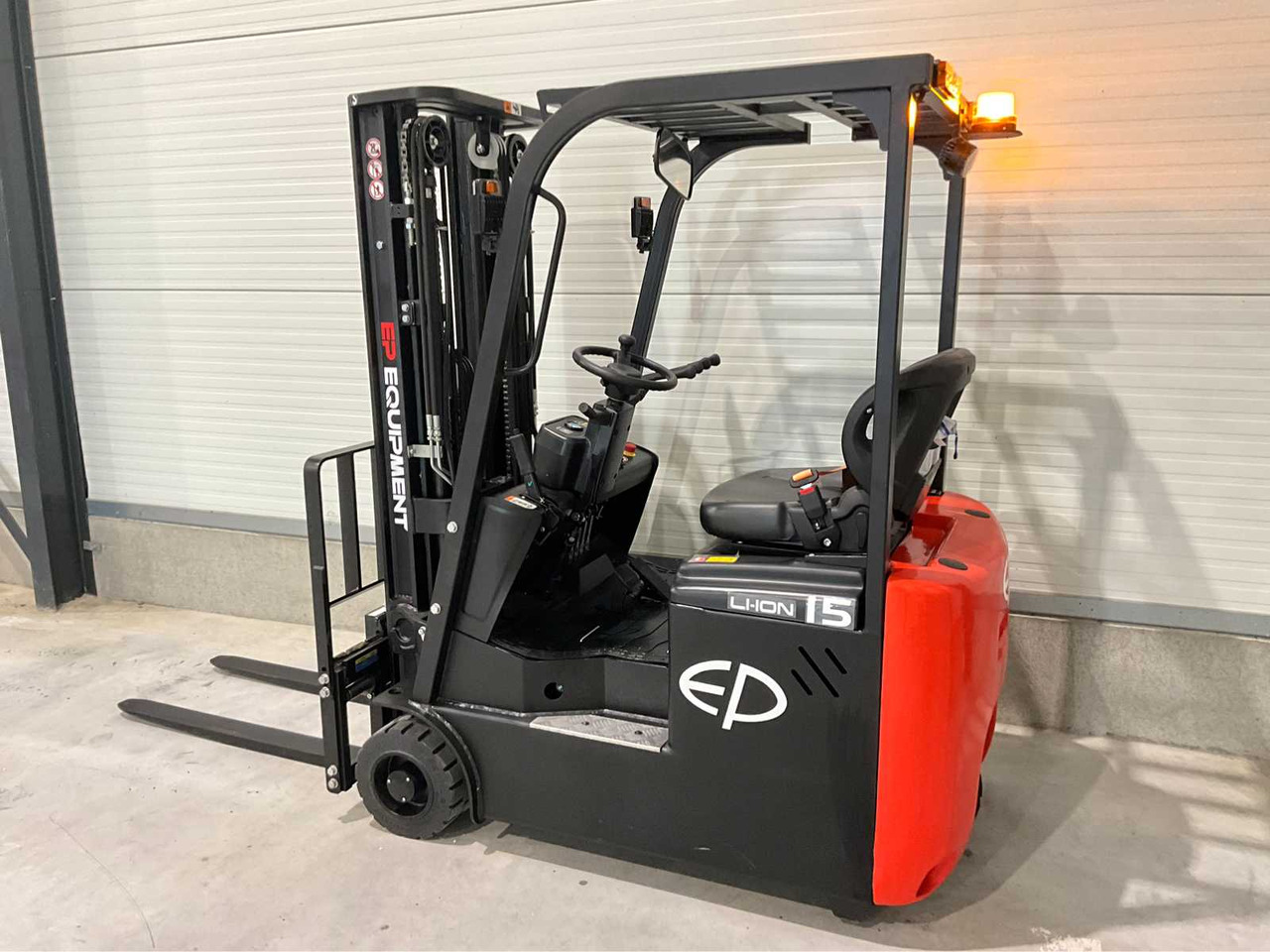

The three-point forklift gets its name from its "three-point" chassis design. Different from traditional four-point forklifts, its structural features are as follows:

- Fulcrum Layout: Two load-bearing wheels on the front axle and one steering wheel on the rear axle form a stable triangular support structure, with a smaller turning radius (typically ≤1.5 meters), making it suitable for operations in narrow spaces.

- Power System: Commonly driven by electricity or fuel. The electric version uses a battery as the power source, featuring zero emissions and low noise, which is suitable for indoor warehousing. The fuel version (diesel/gasoline) has strong power, suitable for outdoor heavy-load scenarios.

- Lifting Mechanism: The gantry lifts vertically, and with the hydraulic system, it realizes cargo lifting (the maximum lifting height can reach 5-6 meters). The forks are detachable and can be adapted to various attachments (such as paper roll clamps, soft package clamps, etc.).

Model: CPD05

Loading weight: 500KG

Gantry lifting height: 2000mm

Battery: 48V45ah

Front tyre size: 400-8

Walking motor: 1.5kw

Machine weight: 750kg

Tyre type: Solid tyre

Overal Length: 1400mm

Overall width: 776mm

Overall height(without lifting): 1700mm

Battery brand: Chao-wei

Rear tyre size: 300-10

Lifting motor power: 1.2kw

Fork length: 750mm customizable

Customed range: cylinder, side shift, lifting height

Li-battery optional: 60V80ah Li-battery60V120ah Li-Battery60V150ah Li-battery
