تأجير مخرطة معدنية MAX MÜLLER MDW 20 M منمن ألمانيا, ID: 9159852

الإجار MAX MÜLLER MDW 20 M

MAX MÜLLER MDW 20 M إيجار

نشرت: 1السنة

نشرت: 1السنة

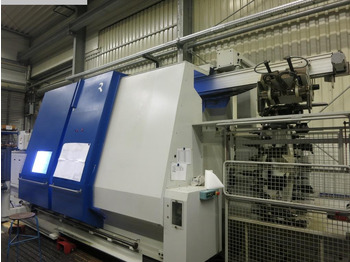

MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 1

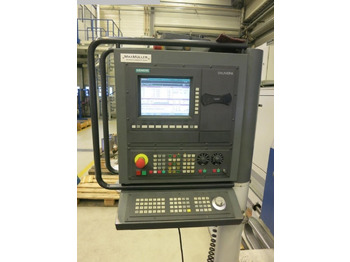

MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 2

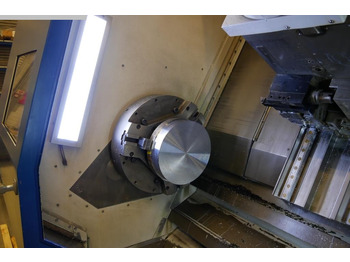

MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 3
MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 4
MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 5

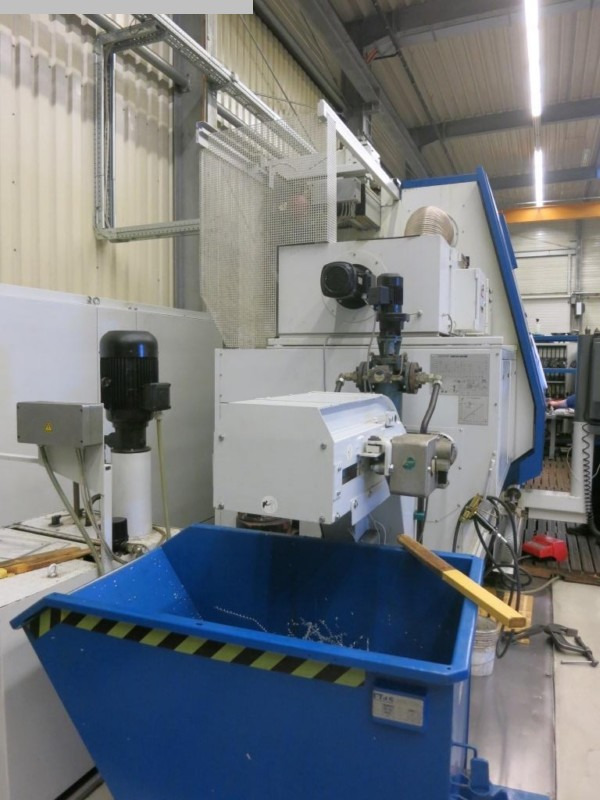

MAX MÜLLER MDW 20 M إيجار MAX MÜLLER MDW 20 M: صور 6
certificate
Ask for all available pictures

نشرت: 1السنة

رقم الاعلان

1077-03107
سنة الصنع

1998
المكان

Germany, Dorsten
يرجى الاتصال بنا للحصول على معلومات مفصلة

Control name: Siemens

Origin: Deutschland

Quotation: ex works

Delivery terms: sofort

Control type: CNC

Video2: S7CxqFszQMA

turning diameter 850 mm

turning length 2000 mm

turning diameter over slide rest 690 mm

control Siemens

type 840 C

Cooling through the spindle 23 bar

centre height 450 mm

spindle diameter in front bearing 200 mm

spindle hollow 128 mm

power capacity 60 kW

turning speeds 7-1800 U/min

Torque 7908 Nm

workpiece weight 4000 kg

tailstock quill diameter 160 mm

tailstock quill taper MT 5

3 jaw chuck Forckrath 600 mm

Tool changer 60

work piece power 30 kW

turning speeds 56-3000 U/min

total power requirement kW

weight of the machine ca. 18 t

dimensions of the machine ca. 6,3x2,4x3,3 m

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
