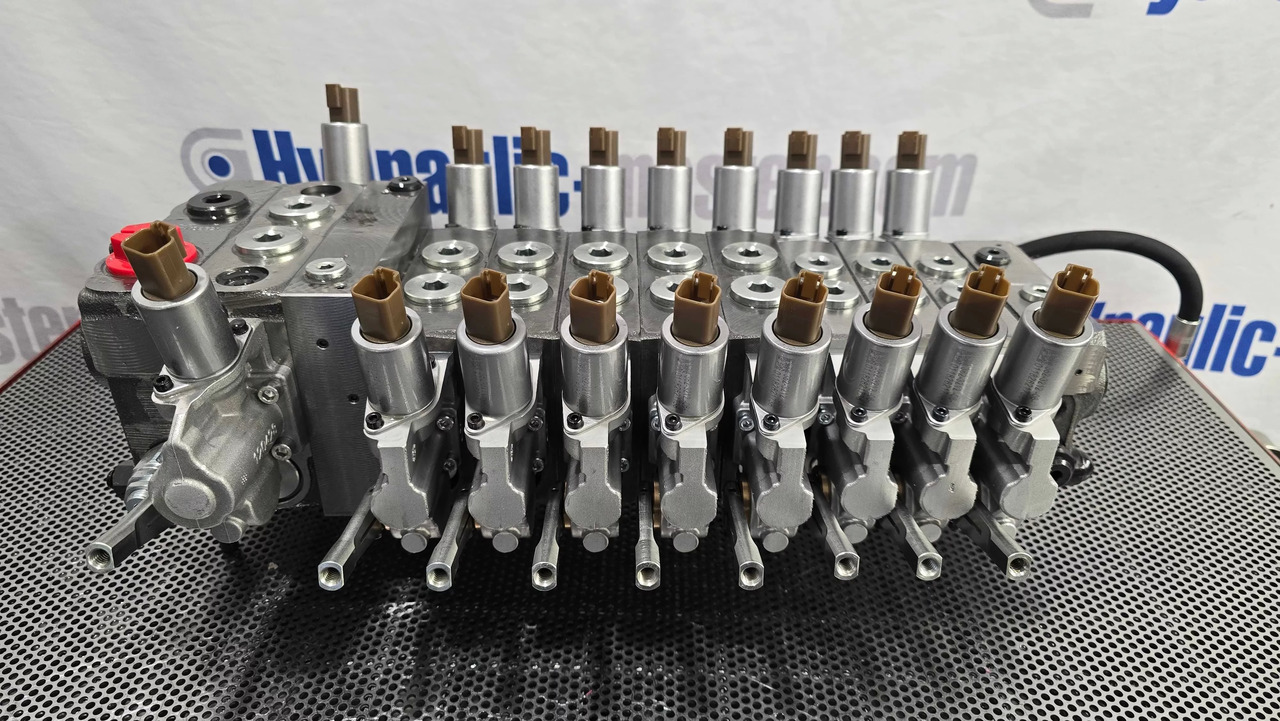

جديد مقطورة الغابات Proportional Valve Walvoil DPX160 combined with DPX100, 9 functions

Hydraulic Valve Walvoil DPX 160 combined with 100 12/24V with 8 Proportional Sections, Open/Closed Center and Additional Levers. The valve includes a post-compensation section.

This valve is configured for advanced machines. If you need a dedicated configuration, we can tailor it to your needs, including changes in spools, tension, number and types of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

Hydraulic, sectional valve Walvoil DPX 160 combined with 100 with compensation, full proportional

Technical specifications of default configuration:

Inlet section: 60GPM 230l/min - Pmax 300 bar 4351psi Power supply port: 3/4" BPS, tank return port: 1" BPS, LS port: 1/4"

1st Main Boom DPX160 150L/min 40GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

2nd Second Boom DPX100 High Flow Section 120L/min 32GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

3rd Boom High Flow Section 100L/min 27GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

4th Slewing High Flow Section 100L/min 27GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

5th Extension High Flow Section 80L/min 21GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

6th Rotator High Flow Section 80L/min 21GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

7th Support Right Leg Standard Section 45L/min 12GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

8th Support Left Leg Standard Section 45L/min 12GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever; Spool: 20L/min; No Anti-shock valves

9th Grapple Standard Section20L/min 6GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever; Spool: 60L/min; No Anti-shock valves

Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

The kit works with a lot of application. For sure please contact with us.
