موبايل كرين Sany 2021 Sany STC1000C7 100 Tons Truck crane【ACHIEVE】TOP CONDITION!!!

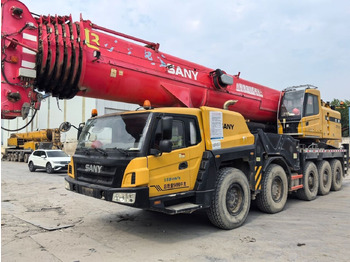

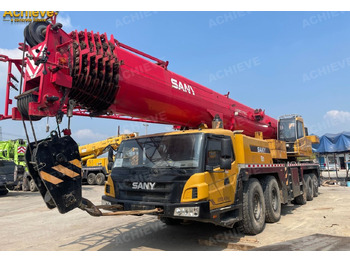

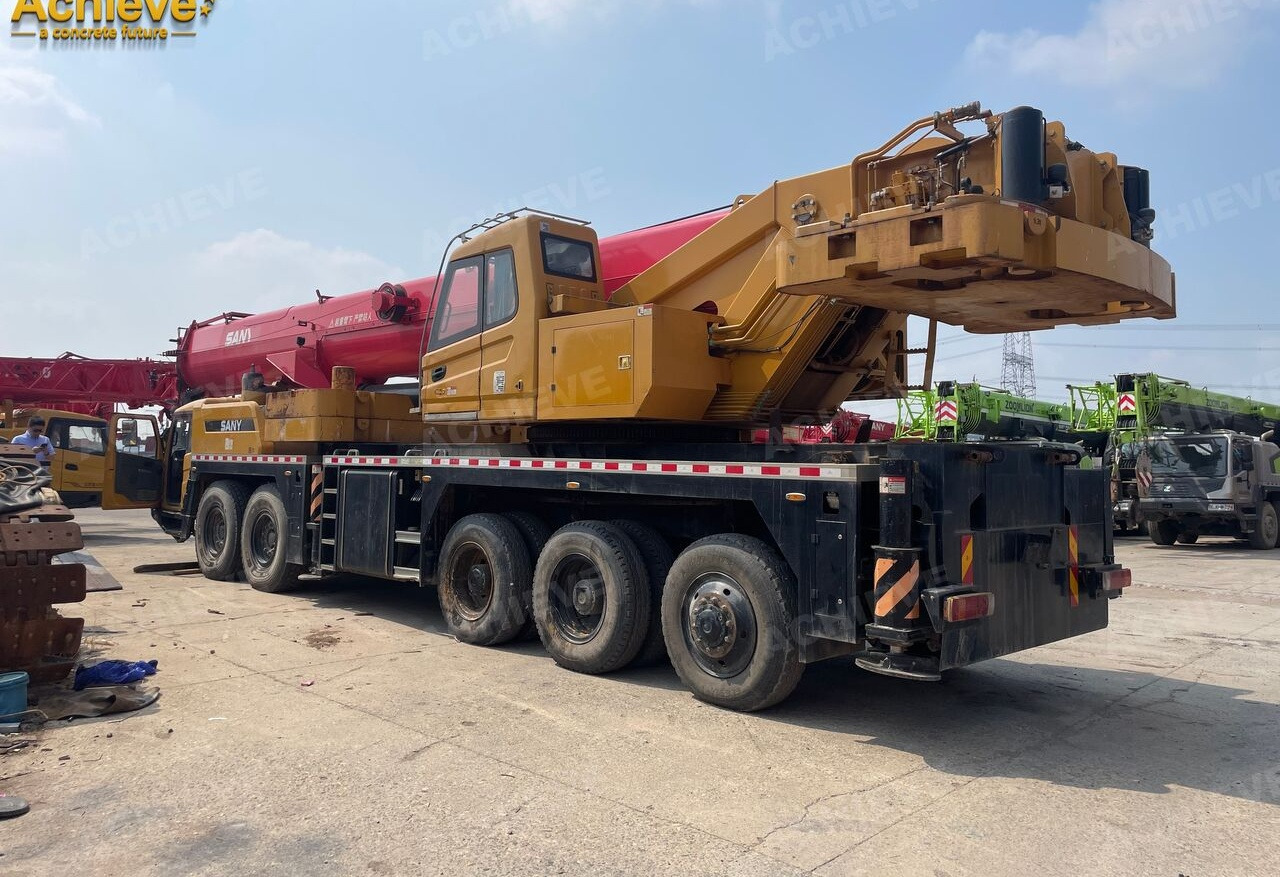

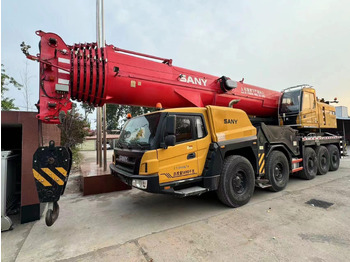

【ACHIEVE】TOP CONDITION!!! 2021 Sany STC1000C7 100 Tons Truck Crane 4057kN·m

●Performance parameters

Maximum lifting height

102.5m

Maximum lifting moment

4057kN·m

Maximum lifting capacity

100t

●Speed ​​Parameters

Maximum single rope speed of main winch

135m/min

Boom full extension/retraction time

135s

Full lifting/lowering time of crane arm

620/640s

Maximum rotation speed

0~1.5r/min

●Weight parameters

Total weight

54600kg

●Size parameters

Machine length

16140mm

Full width

3000mm

Overall height

3995mm

Outrigger span (horizontal x vertical)

8.1(5.35)×7.3m

●Driving parameters

Maximum driving speed

80km/h

Minimum turning radius

12m

Maximum climbing grade

43%

Approach Angle

20°

Departure angle

17°

100 Tons Truck Crane performances and specialties:

■ Extra large U-shaped cross-section 5-section main boom, with a full main boom extension of 50.5m, and a standard 17.5m jib.Optional 9.5m extension arm, maximum lifting height 78m;

■ H-type low front legs, span 8.3×6.63m, standard 21.5t counterweight, optional 2×2.5t, 2×5.5t side matching;

■ The maximum lifting moment of the basic arm is 3557kN.m (60.5t*6m), and the maximum lifting moment of the fully extended main arm is It weighs 16.5t (12m in width), and the maximum lifting range of the main arm is 44m.

■ Extra large U-shaped cross-section 5-section main boom, with a full main boom extension of 50.5m, and a standard 17.5m

As an outstanding representative of the industry's super-heavy-duty models, STC1000C5-8 boasts remarkable advantages in terms of “High energy-conservation, efficiency, reliability, and comfort” compared with industry’s like products and is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports.

1. Superior lifting capacity

The Oval 2.0 version has a compact, large-section 7-section main boom, with the circumference of the last section increased by 7.1%. The main boom is fully extended to 75.5m, with a standard 17.5m jib and an optional 9.5m extension boom, with a maximum boom length of 102.5m.8.1m horizontal outrigger span, standard counterweight 41t, optional 2×2.5t, total 46t, retractable, 550mm, leading hoisting capacity;

The maximum lifting torque of the basic arm is 4057kN.m (69t*6m), the maximum lifting weight of the fully extended main arm is 8.1t, and the maximum lifting range of the main arm is 64m.

additional equipment.

2. Humanized control system

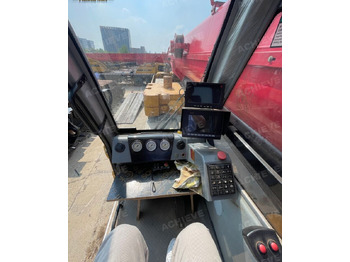

The new "Lingzhi" has two cabins, a 20° reclining control cabin, a new comfortable seat, a forward and backward movement distance of 150mm, a reclining angle of 140°, and a 20% increase in boarding operating space. The track-changing sliding door is easy to open and close, and the sliding pedal and folding front pedal make it easy to get in and out. It has a new interior design, a new multi-channel three-dimensional air supply design, a new soft interior, a panoramic sunroof, an adjustable seat and other humanized designs, an electric wiper, and a standard winch monitoring system, making operation more comfortable and easy.The cab is equipped with high-definition LCD instrument cluster, multi-function steering wheel, air suspension seat, double co-pilot and other humanized designs; Intelligent power distribution and control: dedicated battery compartment, intelligent power distribution and control of the whole vehicle; An integrated maintenance staircase is installed on the right side of the turntable, providing a maintenance channel for the winch and the boom, while leaving more loadable space for the chassis. The winch wire rope with a quick-segment anti-rotation feature has a higher rate of replacement efficiency, and the quick-change double-hook hook (anchor hook) has more heavy-load hanging ropes and more uniform force.

SMART HYDRAULICSOMPACT DESIGN

Larger flow ensures higher efficiency, like higher speed of wire rope reeling. Shunted mode of independently controlled combined motions realizes higher stability, like simultaneous vibration-free luffing and hoisting.

ELECTRICAL CONTROL

Valves and other hydraulic components realize better inching motion performance. Load-sensing and constant-power techniques optimize fuel efficiency. Simple harness and steady signal transmission. Real-time auto monitoring of operation conditions.

Efficient & Unique Hydraulic System

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
