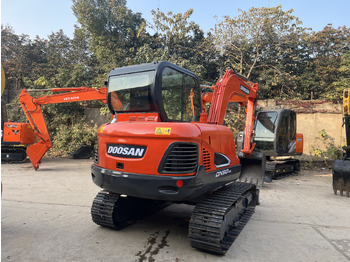

حفارات زحافة DOOSAN Diwanlun DX60-9 Excavator 38.9(52.1)/2100kW(HP) / rpm D24C 0.23m3 5700kg 4.2+2.8Ton 【ACHIEVE】 TOP CONDITION!!!

Important parametersDetailed parameters >>

Bucket capacity: 0.21 m³

Rated power: 38.9/2100 kw/rpm

Machine operating weight: 5700 kg

Maximum digging depth: 3807 mm

Bucket digging force: 4.2 ton kN

Engine Model: D24C Diesel

Fuel tank: 115 L

The Diwanlun DX60-9C excavator offers the following advantages: 1. Powerful: Equipped with a high-performance engine, it delivers powerful driving force and torque, ensuring efficient work performance. 2. Easy to operate: Equipped with an advanced hydraulic system and intelligent control system, it is simple and convenient to operate, enabling precise and efficient operation. 3. Sturdy: Made of high-quality steel and featuring a robust structural design, it offers strong stability and durability, enabling stable operation in complex working environments. 4. Comprehensive: A wide range of accessories and attachments, such as buckets, log grabs, and pile drivers, can be used to adapt to different work requirements, enhancing work flexibility and efficiency. 5. Easy to maintain: Well-designed maintenance access and an easily disassembled structure facilitate repairs and maintenance, reducing maintenance costs and time. 6. Environmentally friendly and energy-saving: Utilizing advanced emission treatment technology and energy-saving design, it reduces environmental pollution and energy consumption. 7. Safe and reliable: Equipped with safety protection devices and an audible and visual alarm system, it promptly detects and addresses potential safety risks, ensuring operator safety. 8. Flexible modification: It has good modification potential and can be modified and upgraded according to actual needs to achieve more working functions and effects.

Specification

powerTraditional power

ManufacturerJoint venture/import

bucketbackhoe

Tonnage (tons)6

Machine operating weight (kg)5700

Bucket capacity (m³)0.21

Boom length (mm)3000

Arm length (mm)1600

performance

Rotation speed (rpm)9

Rotational torque (Nm)971

Walking speed (km/h)4.2/2.3

Ground pressure (Kpa)30

Bucket digging force (kN)4.2ton

Arm digging force (kN)2.8ton

Powertrain

Engine modelD24C DIESEL

Rated power (kw/rpm)38.9/2100

Number of cylinders4

Cylinder diameter × stroke (mm)90×94

Working formInline, turbocharged

hydraulic system

Main pump typevariable displacement piston pump

Travel hydraulic motor typeAxial piston hydraulic motor

Main pump maximum flow (l/min)2×57.8

Working hydraulic oil circuit (Mpa)240

Travel hydraulic circuit (Mpa)240

Rotary hydraulic circuit (Mpa)220

Oil capacity

Fuel tank (L)115

Hydraulic system (L)62

Main body size

Total transport length (mm)5870

Total transport width (mm)2000

Total transport height (mm)1983

Cab height (mm)2565

Boarding width (mm)1850

Total track length (mm)2540

Track shoe width (mm)400

Total track width (mm)2000

Minimum ground clearance (mm)700

Counterweight ground clearance (mm)350

Minimum turning radius of front working device (mm)2365

Rear end turning radius (mm)1660

Scope of work

Maximum digging radius (mm)6136

Maximum digging radius of the parking surface (mm)6000

Maximum digging depth (mm)3807

Maximum digging height (mm)5788

Maximum unloading height (mm)4064

Maximum vertical digging depth (mm)3037

Maximum effective digging depth (mm)3388

Bulldozer blade width × height (mm)2000×350

حفارة زاحفة DOOSAN Diwanlun DX60-9 هي قوة هائلة بمحرك D24C بقوة 38.9 (52.1) / 2100 كيلوواط (حصان) / دورة في الدقيقة ، مما يضمن أداءً متفوقًا في أي موقع بناء. ✅ بسعة دلو تبلغ 0.23 متر مكعب ووزن تشغيلي يبلغ 5700 كيلوغرام ، تقدم هذه الحفارة كفاءة ودقة في مهام الحفر المختلفة. ✅ توفر توزيع الوزن بين 4.2 + 2.8 طن استقرارًا وتحكمًا ، مما يجعلها خيارًا موثوقًا للمشاريع الثقيلة. 【 تحقيق 】 أعلى حالة!!! 🚛 🚜 ⚙️ تعتبر حفارة الزاحفة الاستثنائية DOOSAN Diwanlun DX60-9 هذه إحدى الخيارات العالية الجودة المتوفرة على Truck1.eu ، السوق العالمي الرئيسي عبر الإنترنت للمركبات التجارية وآلات البناء. يمكنك العثور على هذا والآلاف من القوائم الأخرى على Truck1.eu .
