جديد مصنع خلط الخرسانة Constmach 120 m³/h Compact Concrete Batching Plant

You can call us 24/7 for a compact concrete batching plant for sale.

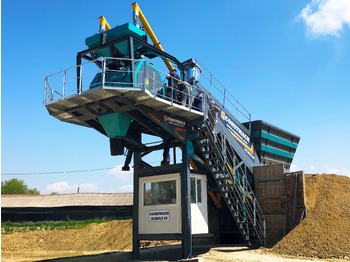

With its compact, powerful and innovative structure, the Compact 120 concrete batching plant with Bucket offers a combination of high performance and efficiency under the CONSTDech brand. This model provides fast and efficient completion of large projects with a production capacity of 120 m3/h. the power plant, which weighs 35 tons and has a 175 kW engine power, promises energy efficiency and long-term durability.

The Compact 120 with Bucket, which can be easily installed in an area of 300 m2, is designed to provide maximum efficiency even in tight spaces. It offers solutions suitable for all kinds of concrete needs with four different mixer options (Pan, Single Shaft, Double Shaft, Planetary). The requirement of 250 kVA electricity generator guarantees uninterrupted operation of the power plant under any conditions.

Advanced weighing systems for aggregates, water and additives make it easy to achieve the ideal balance in each mixture. The cement silo capacity can be adjusted according to the scale of your projects, offering flexible options from 50 tons to 500 tons. The bucket transfer system optimizes your workflow by providing fast and efficient transportation of materials.

Thanks to the fully automatic control system, you will simplify your operations and save your time. The Compact 120 with Bucket is not only a machine, but also a center of strength that will facilitate and speed up your work.

Add value to your projects and take your construction processes to the next level by choosing Kovali Compact 120 concrete batching plant with CONSTMACH quality. With this product, which aims at perfection in every detail, you will achieve excellent results in your work.

Compact Concrete Batching Plant with Bucket Kompakt-120 Technical Specifications

general features

Production capacity 120 m3/h

Weight 35 tons

Total Engine Power 175 kW

Electricity Generator Requirement 250 kVA

Mixer Options Pan - Single Shaft – Double Shaft - Planetary

The required area for operation is 300 m2

technical specifications

Aggregate Stock Hopper 4 x 20 m3

Aggregate Weighing Hopper 2 m3

Aggregate Weighing Conveyor 800 x 13,000 mm

Aggregate Transfer Bucket Volume 4 m3

Mixer Wet Concrete Volume 2 m3

Cement Weighing Hopper 1.200 kg

Water Weighing Hopper 600 lt

Additive Weighing Hopper 30 lt

Air Compressor 500 lt, 7.5 kW

Cement Silo capacity option from 50 tons to 500 tons

Control Type FULLY AUTOMATIC
