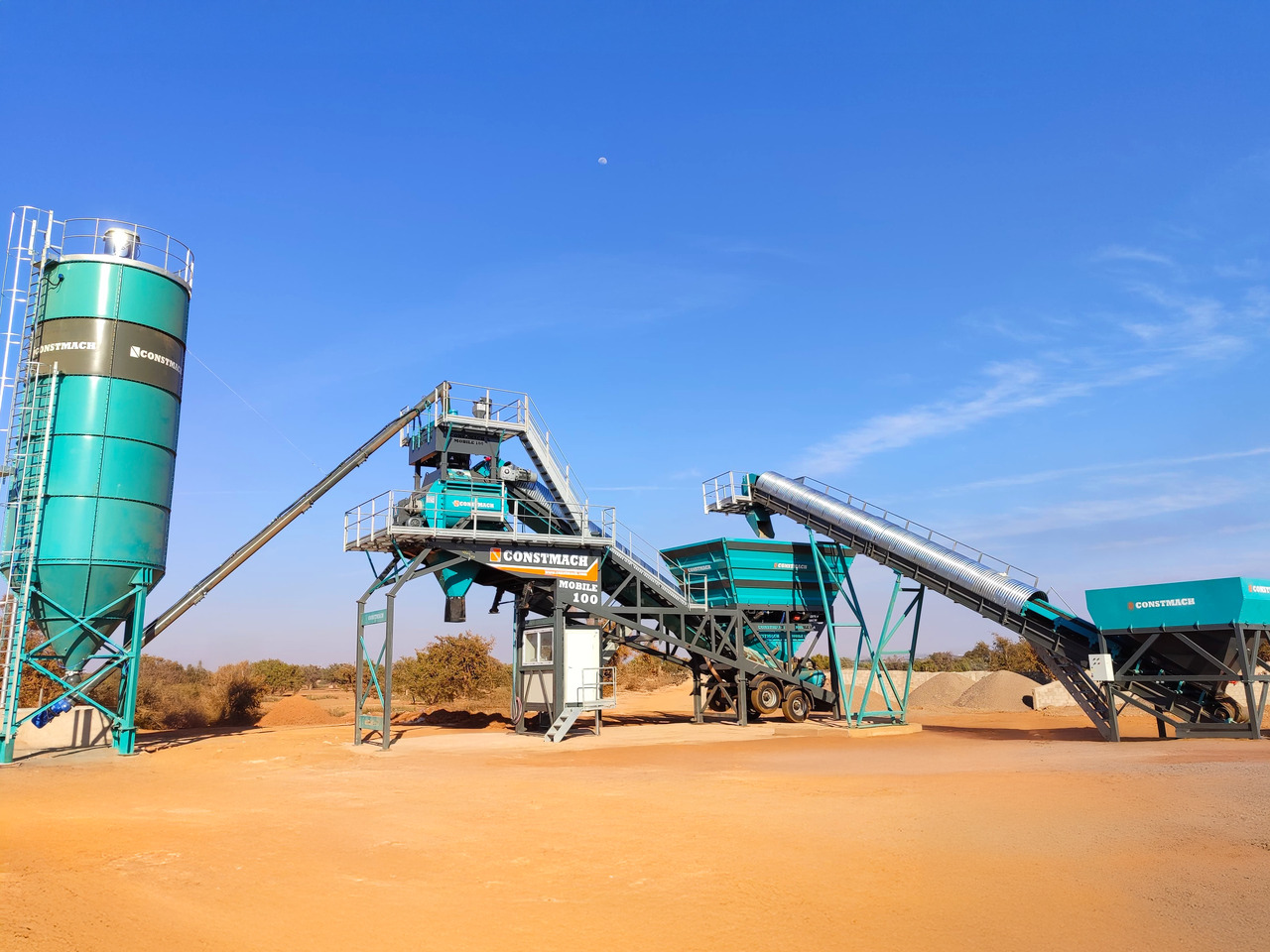

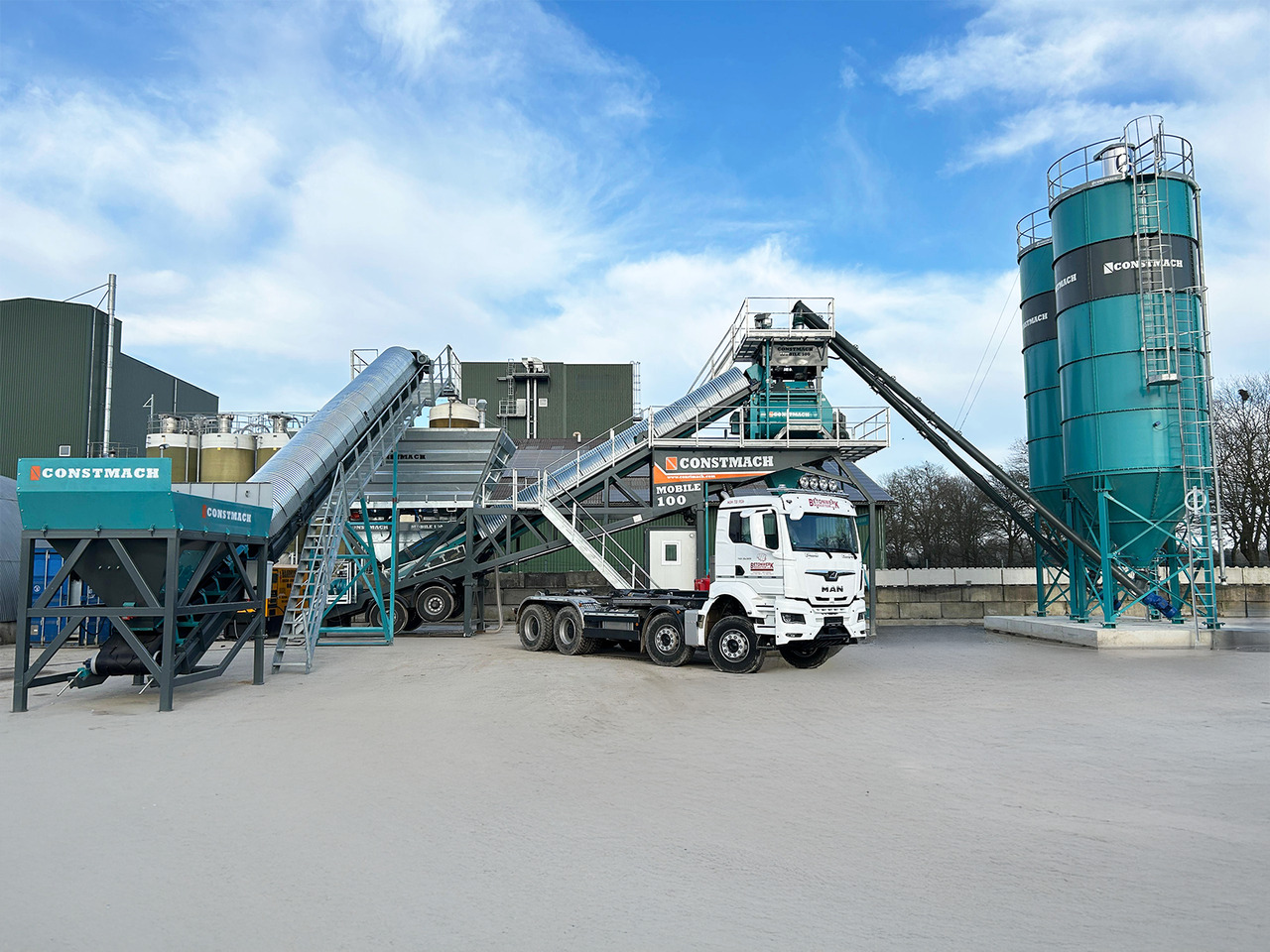

جديد مصنع خلط الخرسانة Constmach 100 m³/h Mobile Concrete Batching Plant

You can call us 24/7 for mobile concrete batching plant for sale.

Our Mobile-100 mobile concrete batching plant model offers an excellent solution for professionals looking for mobility and efficiency. this superior power plant with a production capacity of 100 m3/h has been designed to meet your needs that require high performance and speed in your projects. Its compact structure attracts attention with its transport position dimensions of 17 meters long, 2.8 meters wide and 4.3 meters high, while its weight of 30 tons facilitates portability.

The Mobile-100 has a total motor power of 125 kW and requires a 200 kVA electric generator to operate. This model, which can make all kinds of mixtures homogeneously with the option of a double shaft mixer, can work effectively on an area of only 300 m2. The various measuring and weighing capacities included in the structure of the product ensure that you are in control at every stage of the process. Especially with the aggregate stock bunker with a capacity of 4 x 12 m3, the cement weighing bunker with a capacity of 1,200 kg, and the water weighing capacity of 800 liters, you will get optimal results in every use.

Mobile-100 offers options of internal cement silo with 26 tons capacity embedded in it and external cement silo with capacity December 50 to 500 tons, which provides flexibility according to the size and requirements of your project. It provides a user-friendly experience with a fully automatic control system, while ensuring that every detail is perfectly synchronized.

This mobile power plant adds value to your projects by providing fast and effective solutions in all kinds of places with its high capacity and flexible workspace requirements. Mobil-100 offers everything you need for sustainable and successful results at the same time. Dec.100 offers everything you need for sustainable and successful results.

Mobile 100 Mobile Concrete Batching Plant Technical Specifications

General features

Production capacity 100 m3/h

Transport Position Size 17(L) x 2.8(W) x 4.3(H) meters

Weight 30 tons

Total Motor Power 125 kW

Required Electricity Generator 200 kVA

Mixer Options Double Shaft Mixer

The required area for operation is 300 m2

technical specifications

Aggregate Stock Hopper 4 x 12 m3

Aggregate Weighing Hopper 3m3

Aggregate Transfer Conveyor1.000 x 13.000 mm

Mixer Wet Concrete Volume 2 m3

Cement Weighing Hopper1.200 kg

Water Weighing Hopper 800 lt

Additive Weighing Hopper 30 lt

Air Compressor 500 lt, 5.5 kW

Cement Silo 1. Option Internal Type, embedded in the hull, with a capacity of 26 tons.

Cement Silo 2. Option External Type, capacity Deceleration from 50 to 500 tons option

Control type FULLY AUTOMATIC
