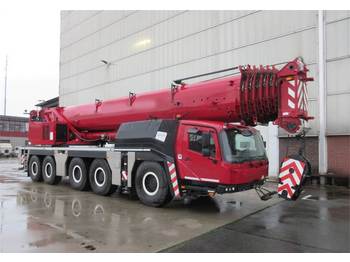

رافعة لجميع التضاريس Grove GMK 5250 L-1

Main Data:

Model / Type of crane GMK 5250 L-1 / AT

Max. capacity (75%) / max. loadmoment (tm) 250 t at 3 m / - tm

Year / First taken into operation 2020 / 08.05.2020

Working hours chasis (h) / date 459 h / 01.07.2021

Working hours superstructure (h) / date 1280 h / 01.07.2021

Mileage (km) / date 9770 km / 01.07.2021

Data Chassis:

Truck chassis type / Width GMK 5250 L / 3,00 m

Carrier cabin wide

Aircondition existing / available

Additional heating existing / available

Engine (make/type) / hp / kW DB OM 471 LA / 530 / 390

Engine exhaust-stage V

Gearbox manufacturer / Type DB / SG / G 280

Crane driveable from below

Drive and steering 10 x 6 x 10 / 1/2/3/4/5.

Type of axle suspension hydropneumatic

Size of wheels 16.00 R 25

Sparewheel 0

Controlled from support left, right, above

variable supporting base available

Support basis L/B 8,95 x 7,80 m

Combination box, for slings and support timber existing / available

TÜV / SP-acceptance validity 06.22 / 12.22

Data Superstructure:

Telescopic boom / boom sections 13,3 - 70 m / 7

Swing-away jib / Adapter 12,5 - 21,3 m / 5-50° hydr.

No. of winches 1

Winch 1 cable pull / cable Ø 104 kN / 22 mm

Hookblocks / Crane hook (t) 80 t (DH) / 32 t / 12 t

Counterweight (t) 50 t / 30 t

Emergency operation of crane hydraulic available / existing

Wind speed indicator existing / available

Two working floodlights at pivot section electrically adjustable existing / available

Aircondition existing / available

Additional heating existing / available

Safe load indicator Grove CCS / 75 %

UVV-acceptance validity 01.22

Other features:

camera system for reverse drive with colour monitor; external starting connection for carrier; flight warning light

Subject to change.

Subject to prior sale.

Complete data sheet on request.
