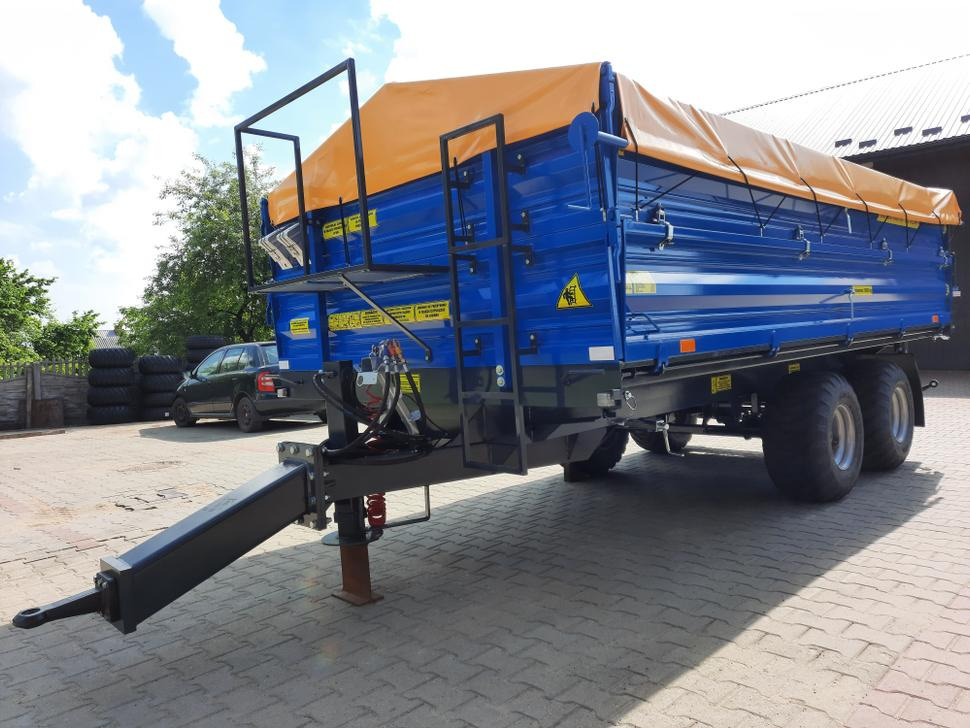

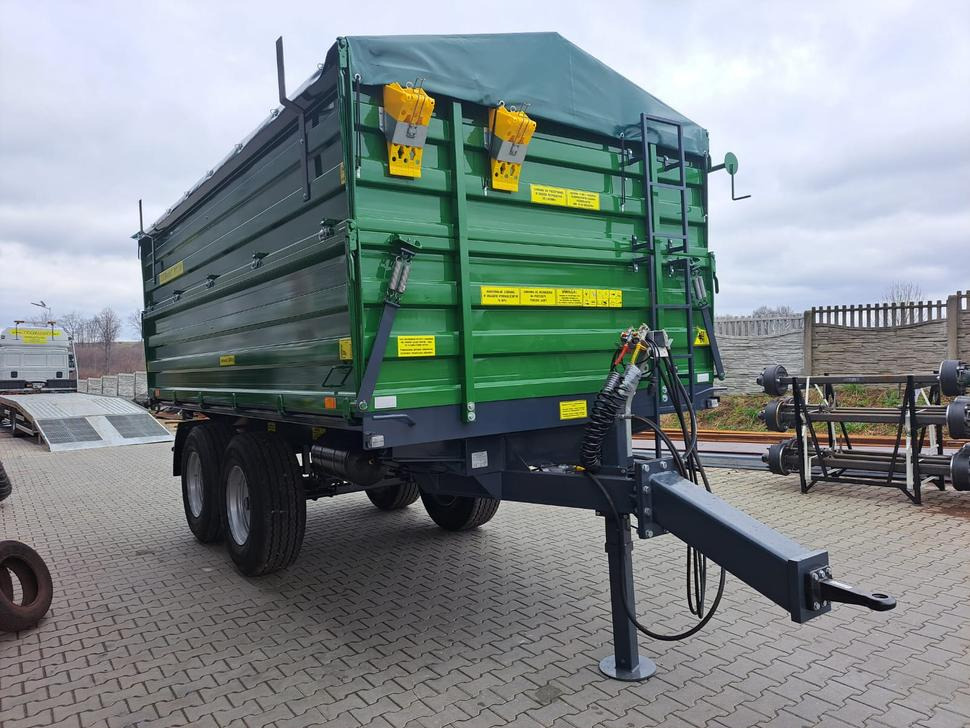

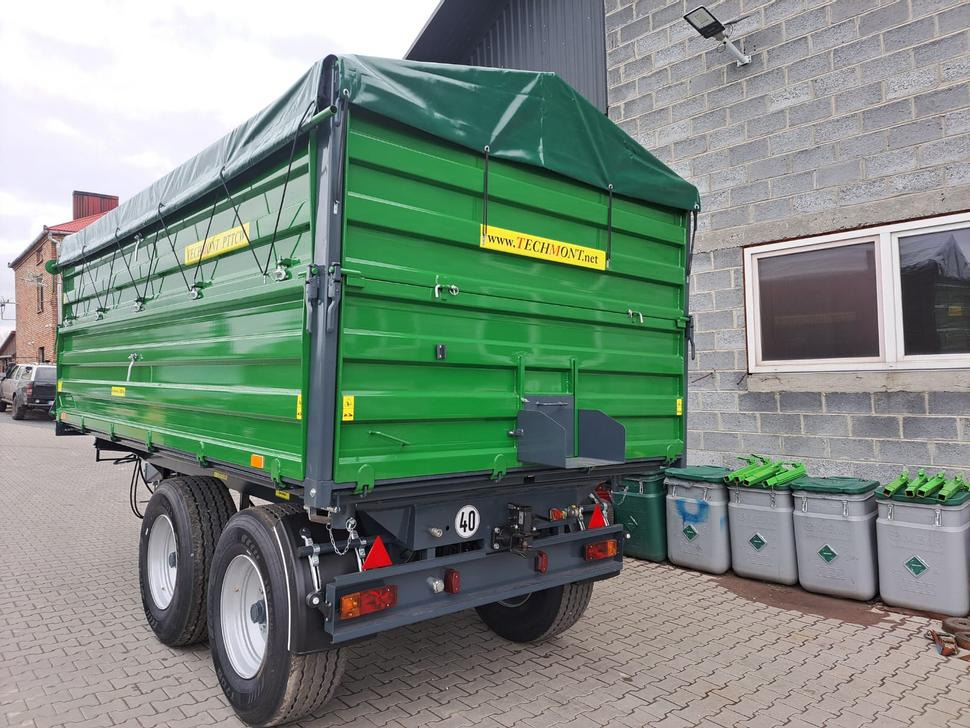

Techmont Tandem trailer PTTCW 310 (pallet width)

Payload capacity 10000 kg

Unladen weight 3300 kg

Permissible total weight 13,300 kg

Cargo volume 11.7 possible 17.6 or 21.1 m3

Cargo area 11.7 m2

Length of load body inside 4750 mm

Length of load body outside 4850 mm

Width of load bed inside 2450 mm

Width of load bed outside 2550 mm

Overall dimensions (length/width/height) 6350/2550/2100* possible 2660 or 2760 mm

Box wall height 500+500 mm

Platform height from the ground 11000 mm

Wheel base 1760 mm

Suspension parabolic springs, wishbone

Drawbar eye load 1660 kg

Tire size 500/50-17

Three-way tipping system

Design speed (degrees) 30 km/h axles adapted to 40 km/h

Tipping angle of the cargo box (rearward/side) (degrees) 50/45

Telescopic cylinder (stroke/oil demand/pressure) 1700/134/200 bar

Minimum tractor power requirement 75 hp

Standard equipment of trailers:

Sides including extensions 2 x 50 cm

Chocks mounted on the front side

Check valves to regulate the tilt of the cargo box (safety)

Hand brake with crank-screw

Rear hitch (ability to pull a second trailer with a GVW of 10,000 kg 13,000 kg 15,600 kg) additional electrical socket

Single-wire brake system

Adjustable front hitch

All-round board locking system

Rear wheel fenders

Service support for the cargo box

Additional equipment: (additional fee)

- Working platform on the front side

- Tarpaulin with frame

- additional side row 500 mm

- hydraulic support foot

- spare wheel

- additional pneumatic-hydraulic installations for towing a second trailer

- hydraulic support foot

- rear hitch automatic

- reinforcement of the upper frame with sides 3x50 cm

- metal floor 4 mm

- LED lighting

Tires:

- 385/65 R22,5
